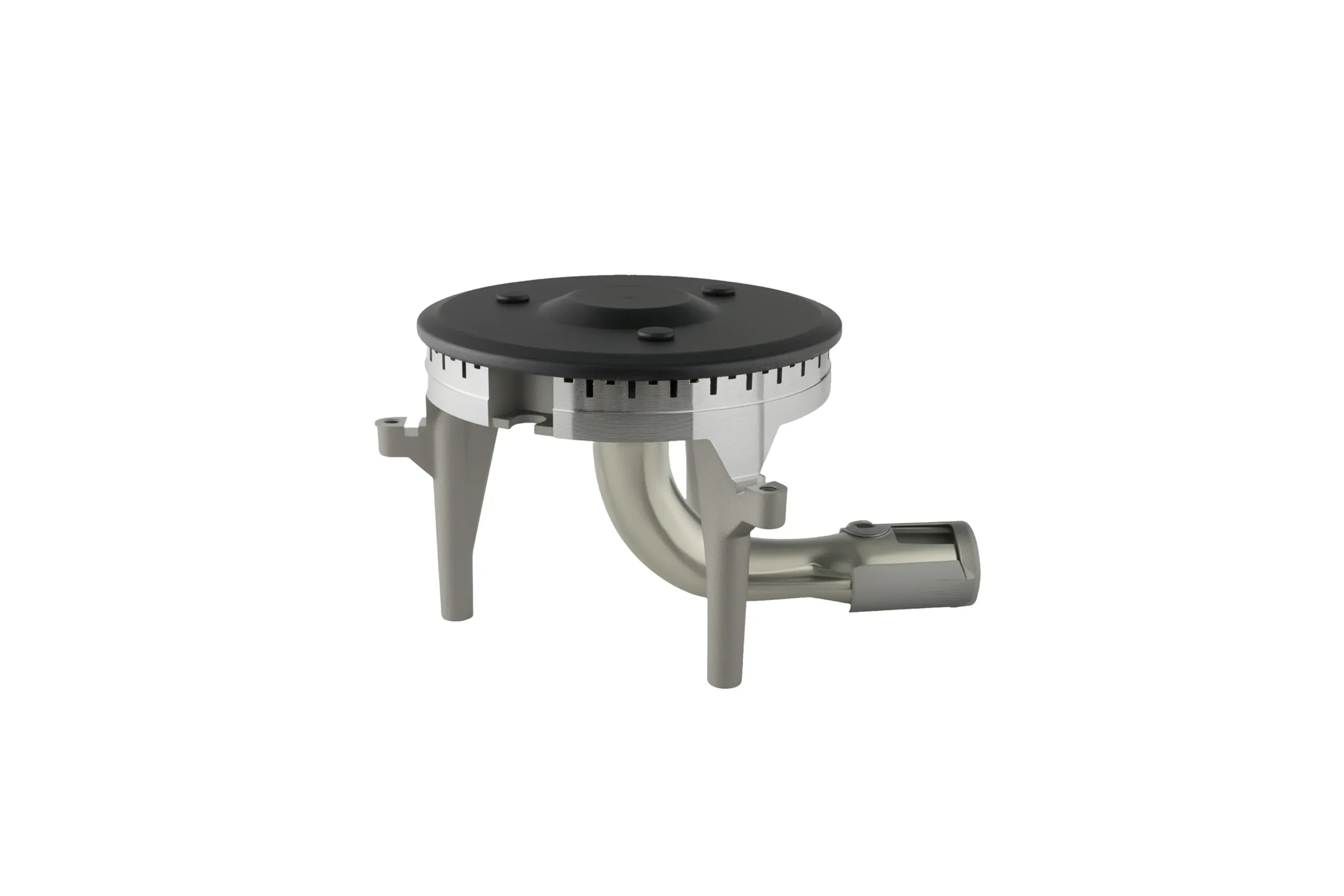

Gas Cooktop Burner Parts Manufacturing Process: From Raw Material to Finished Burner

1. Raw Material Selection and Inspection

The manufacturing process begins with choosing the correct raw materials, which directly affect heat resistance, flame stability, and product lifespan.

Common Materials Used

• Gray cast iron (GG20 / HT200) – excellent heat retention and durability

• Aluminum alloy – lightweight with fast heat response

• Brass – commonly used for injectors and gas nozzles

• Stainless steel – used in decorative or structural components

Quality Control Measures

• Chemical composition analysis

• Incoming material inspection

• Traceability documentation

Reliable manufacturers ensure all materials meet defined standards before production begins.

2. Casting Process for Burner Components

Casting Methods

• Sand casting (widely used for cast iron burner heads)

• Gravity casting or high-pressure die casting (for aluminum parts)

During casting, molten metal is poured into molds designed to form the burner head, venturi tube, or base structure.

Key Process Controls

• Precise pouring temperature

• Proper mold venting to reduce porosity

• Controlled cooling rate to ensure structural integrity

High-quality casting ensures consistent internal structure and mechanical strength.

3. CNC Machining and Precision Processing

After casting, burner components undergo CNC machining to achieve accurate dimensions and functional precision.

Typical Machining Operations

• Turning and milling

• Drilling of flame ports

• Machining of injector interfaces

CNC processing ensures:

• Uniform flame distribution

• Tight dimensional tolerances

• Compatibility with OEM cooktop designs

4. Surface Preparation and Treatment

Surface treatment improves corrosion resistance, heat durability, and appearance.

Common Surface Treatments

• Sandblasting or shot blasting for surface uniformity

• High-temperature coating

• Chrome plating or electroplating (for corrosion resistance)

Proper surface preparation ensures strong coating adhesion and long-term durability.

5. Injector and Gas Control Component Assembly

Injectors play a critical role in regulating gas flow.

Key Features

• Precision-machined brass injectors

• Gas-type-specific orifice sizes (LPG or natural gas)

Accurate injector design ensures:

• Stable flame height

• Correct calorific output

• Reduced gas consumption

6. Burner Assembly Process

Individual components are assembled into complete burner units.

Assembly Steps

• Burner head alignment

• Injector and venturi integration

• Seal and fitting installation

Proper assembly guarantees airtight gas flow and consistent performance.

7. Functional Testing and Inspection

Before shipment, each burner or batch undergoes performance testing.

Common Tests

• Flame stability testing

• Gas leakage testing

• Pressure and airflow testing

• Visual and dimensional inspection

Testing ensures compliance with safety and performance standards.

8. Compliance with CE and International Standards

Professional manufacturers design their gas cooktop burner parts to comply with:

• CE certification

• EN 30 gas appliance standards

• Local gas regulations for target markets

Documentation and testing support simplify OEM certification processes.

9. Packaging and Final Quality Control

Burner parts are carefully packaged to prevent damage during transport.

Final Checks

• Batch traceability verification

• Packaging integrity inspection

• Labeling and documentation review

Proper packaging ensures burners arrive ready for assembly.

10. Continuous Process Optimization

Leading manufacturers continuously improve their processes by:

• Monitoring production data

• Refining mold designs

• Enhancing machining precision

• Upgrading surface treatment technology

Process optimization helps reduce defect rates and control long-term costs.

Conclusion

The manufacturing process of gas cooktop burner parts is a multi-stage operation that requires precise control at every step—from raw material selection to final testing. Each stage directly impacts flame stability, energy efficiency, safety compliance, and product longevity.

For OEM gas cooktop manufacturers, partnering with a supplier who understands and controls this entire process is key to producing reliable, competitive gas appliances for global markets.
